25ton Trenchless Horizontal Directional Drill/Drilling Rig Machine

1
MOQ
negotiable
السعر
25ton Trenchless Horizontal Directional Drill/Drilling Rig Machine
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
نموذج:: آلة الحفر / الحفر الاتجاهي الأفقي بدون خنادق 25 طن
قوة المحرك (kw): 110
وزن المنصة (كجم): 9500
القوة القصوى للدفع والسحب (KN): 260/300
السرعة القصوى للدفع والسحب (م/دقيقة): 45
قضيب الحفر (مم): ف60×3048
تحميل تلقائي (القطع): 48 (60 عصا حفر)
الأعلى. طول الحفر (م): 300
إبراز:

25ton trenchless directional drill machine,horizontal drilling rig machine,trenchless drilling rig with warranty

,

horizontal drilling rig machine

,

trenchless drilling rig with warranty
معلومات اساسية
مكان المنشأ: الصين
اسم العلامة التجارية: Glorytek
إصدار الشهادات: CE
رقم الموديل: 25 طن
شروط الدفع والشحن
شروط الدفع: خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون
منتوج وصف
25tons Pull Force Utility Tele-cable HDD Drilling Rig

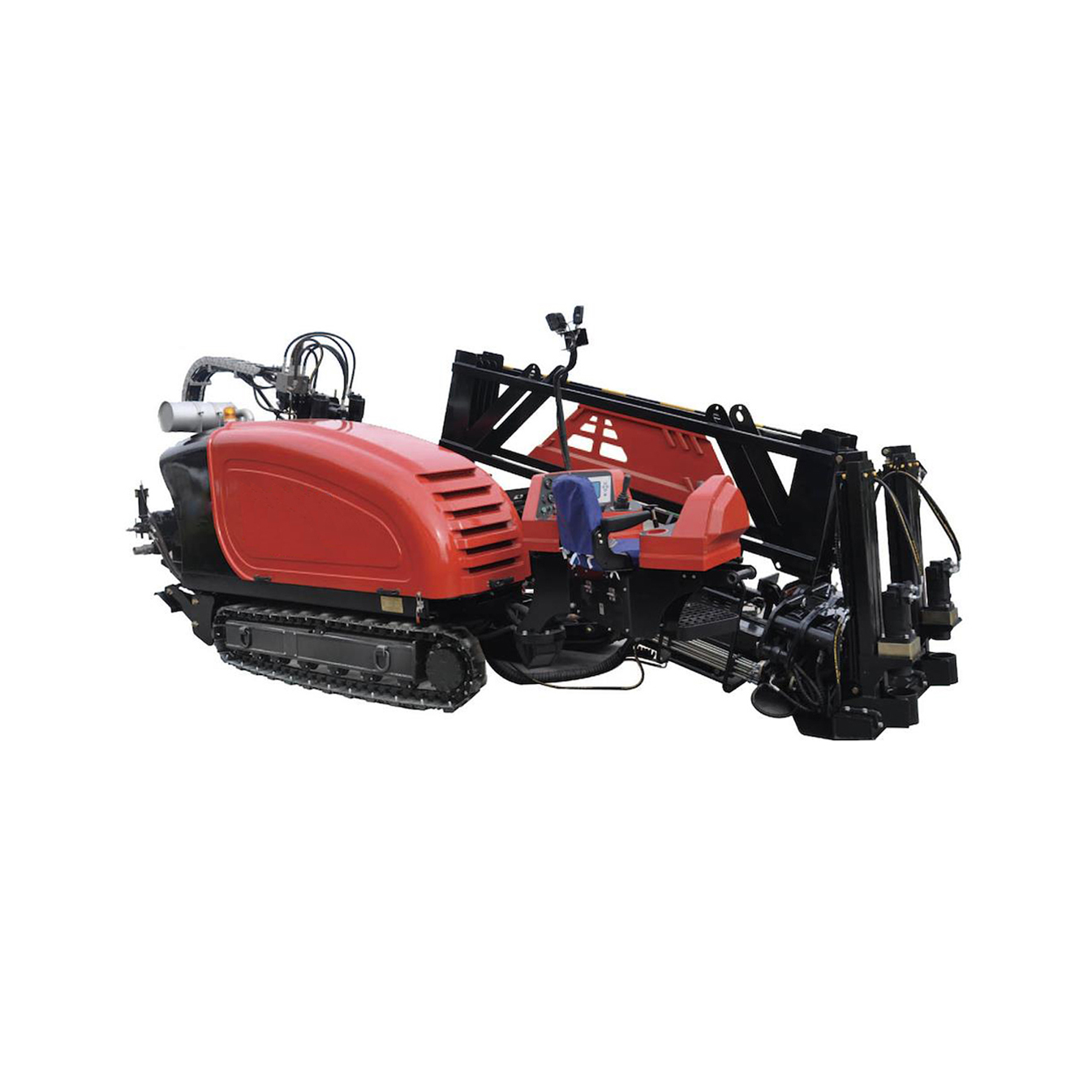

25ton Trenchless Horizontal Directional Drill/Drilling Rig Machine 0
Product Description

1-Technical Parameter
Item Parameter Item Parameter
Size
(L×W×H)(mm)		 6950×2050×2400 Max. flow of mud pump (L/min) 250
Engine Power
(KW)		 110 Max. pressure of mud pump (MPa) 8
Rig Weight (kg) 9500 Max. torque (N•m) 8100
Max. push & pull force
(KN)		 260/300 Max. rotation speed (r/min) 190
Max. push & pull speed (m/min) 45 Entry drill angle (°) 12-22*
Walking speed (km/h) 2.5-4.0 Max. climbing gradient (°) 17*
Drill rod (mm) Ф60×3048 Max Diameter of Aperture (mm) Ф750
Auto loading
(pcs)		 48(60drill rod) Max. Drilling Length
(m)		 300
Feature
  1. auto-loading(optional);
  2. power head push-pull reinforcement is reserved;
  3. auto anchor(optional);
  4. power head rotation speed two stall to adjust(high speed, low speed), push-pull speed three stall to adjust(high speed, middle speed, low speed);
  5. track wire control walk, speed two gears to adjust(high speed, low speed);
  6. glass fiber reinforced plastics cover, movable operation table with canopy;
  7. pilot valve control, movement more easier, comfortable.
  8. Mud flow adjust valve, mud stop valve, antifreeze water tank, with water gun.

Main performance characteristics

1. Equipped with Dongfeng cummins engine, large power, stable performance, lower fuel consumption, lower noise, more suitable working in urban area.;
2. Rotation, push-pull pilot control, operation more portable.
3.Driving head adopts cycloid motor from Eaton, which drives rotation directly, with large torsion, stable performance, and two stall stepless speed regulation. Driving head push-pull adopts cycloid motor from Eaton, which has three stall speed and high construction speed of which leads far ahead in fellow-competitors. The reserved reinforcement device increase construction scope.The hydraulic gear pump adopts technique, track wire control operation, convenient and fast loading, unloading as well as construction site transition.
4. Operation table overview is broad, operation table design adopts human-computer construction way, comfortable operation, reduces fatigue strength.
5. Equipped with φ60×3000mm drill rods,moderate machine size adapts to narrow and small working area and high efficient construction as well.
6. Surface is with elegant appearance, easy maintenance, fully embody humanist designing idea.




Related Products

25ton Trenchless Horizontal Directional Drill/Drilling Rig Machine 1
Packing and Transport

Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.

Company Profile
25ton Trenchless Horizontal Directional Drill/Drilling Rig Machine 2
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

After-sale Warranty

(1) Within the period of the first year after delivery, the main parts of Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.

(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.

(3)Timely after-sale assistance shall be provided all the time.

FAQ

Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.

Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.

Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.

Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
