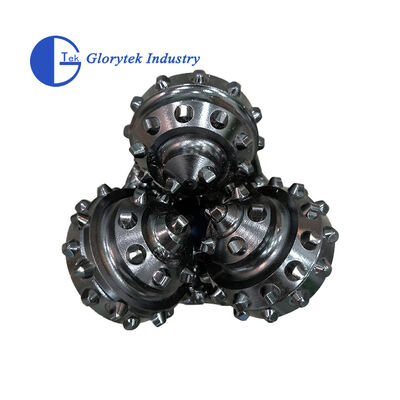

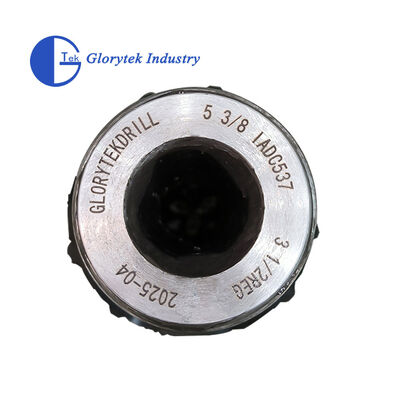

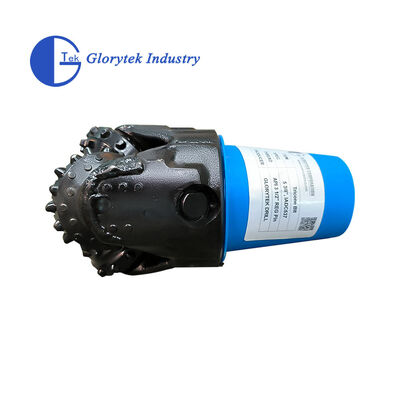

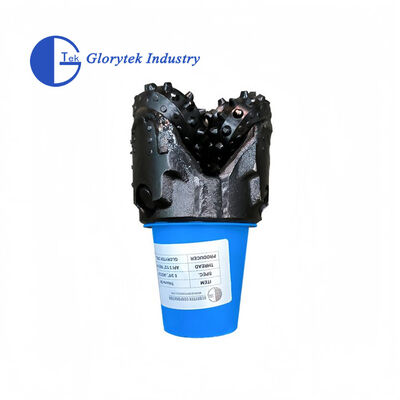

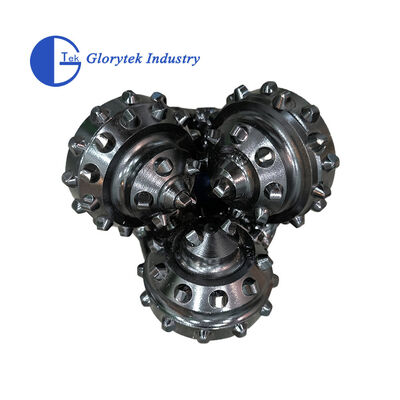

Tricone bit is mainly used in oil well,water well, coalbed methane and geothermal well drilling engineering.
Glorytek tricone bits are designed and manufactured according to the standard of oil drilling bit, which are long life, high drilling efficiency and low
operation cost. At present, sizes ranging from 3 7/8 " to 26" have been developed, which can be applied to different formations from soft to very hard.Those designs are compatible with different drilling technologies such as conventional drilling and directional drilling.
The roller bit is a widely used drilling tool that features alternating cutting teeth contact with the well bottom, resulting in small rock breaking torque and high specific pressure for efficient penetration into various formations.
| IADC WOB (KN/mm) | RPM (r/min) | Applicable Formations |
|---|---|---|
| 417/437/447/415/435 0.35~0.9 |
150~70 | Very soft formations with low compressive strength and high drillability |
| 517/527/515 0.35~1.0 |
140~60 | Soft formations with low compressive strength and high drillability |
| 537/547/535 0.45~1.0 |
120~50 | Soft to medium formations with low compressive strength |
| 617/615 0.45~1.1 |
90~50 | Medium hard formation with high compress strength |
| 637/635 0.5~1.2 |
80~40 | Hard formations with high compressive strength |
Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years of experience. Supported by an experienced R&D team and engineers, we successfully complete projects according to client requirements.
Our manufacturing facility covers 250,000 square meters with 150,000 square meters of construction area. We operate over 200 sets of machining machinery, CNC processing centers, friction welding machines, and testing equipment, employing more than 600 professionals. Our products are exported to over 60 countries worldwide.
