High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit

1 قطعة
MOQ
negotiated
السعر
High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
يكتب: tci بت tricone ، شبكة غربلة الألغام
طلب: النفط والغاز وبئر الماء وحفر آبار النفط الماسية
لون: أسود أو حسب متطلبات العملاء
تشكيل: تشكيل ناعم إلى متوسط ​​، حجر طيني ، مثل الصخر الزيتي الصلب ، الحجر الجيري الناعم ، إلخ.
ميزة: جودة عالية وأفضل خدمة وقوة عالية ودائمة وكفاءة عالية
إبراز:

6 1/2 inch tungsten carbide drill bit,IADC 837 tricone roller bit,tricone rock bit with carbide inserts

,

IADC 837 tricone roller bit

,

tricone rock bit with carbide inserts

معلومات اساسية
مكان المنشأ: الصين
اسم العلامة التجارية: GLORYTEK
إصدار الشهادات: CE,SGS,TUV
رقم الموديل: 6 3-4 '' IADC517
شروط الدفع والشحن
تفاصيل التغليف: معيار تصدير التعبئة
وقت التسليم: 5-7 أيام عمل
شروط الدفع: خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام
القدرة على العرض: 2000 قطعة في الشهر
منتوج وصف
High strength Tricone Rock Bit 6 1-2'' For Soft To Hard Formation
1. Description:

Tricone drill bits has been in continuous use in the water well,oil & gas industry, and is still being improved!

We have a wide selection of tricone bits - there’s a bit for every application.our product line can be configured to use tungsten car bide insert (TCI) bits and steel tooth bits for the toughest drilling applications.

Tricone bits cut faster and last longer in all ground conditions and especially varying ground conditions.Higher penetration rates and Higher quality.

The 6 1-2 '' blast hole bits are designed for drilling soft to medium hard formations, with rock compressive.Formation drilled may consist of shale, limestone, quartzite, slate, sandstone and granite.

2. Applications:

Wry soft formation with low compressive strength and high drillability, such as:

shale, clay, sandstone, gravel, etc.

3. Specifications:
Bit size API thread recommended torque
in mm in KN.M
6 152.4 3 1/2 9. 5-12.2
6 1/8 155.6 3 1/2 9. 5-12.2
6 1/4 158.8 3 1/2 9. 5-12.2
6 1/2 165.1 3 1/2 9. 5-12.2
6 5/8 168.3 3 1/2 9. 5-12.2
6 3/4 171.5 3 1/2 9. 5-12.2
7 1/2 190.5 4 1/2 16. 3〜21. 7
7 5/8 193.7 4 1/2 16. 3〜21. 7
7 7/8 200 4 1/2 16. 3〜21. 7
8 3/8 212.7 4 1/2 16. 3〜21. 7
8 1/2 215.9 4 1/2 16. 3〜21. 7
8 5/8 219.1 4 1/2 16. 3〜21. 7
8 3/4 222.3 4 1/2 16. 3〜21. 7
9 1/2 241.3 6 5/8 38〜43. 4
9 5/8 244.5 6 5/8 38〜43. 4
9 7/8 250.8 6 5/8 38〜43. 4
10 1/2 266.7 6 5/8 38〜43. 4
10 5/8 269.9 6 5/8 38〜43. 4
11 279.4 6 5/8 38〜43. 4
115/8 295.3 6 5/8 38〜43. 4
12 304.8 6 5/8 38〜43. 4
12 1/4 311.2 6 5/8 38〜43. 4
12 5/16 312.7 6 5/8 38〜43. 4
12 3/8 314.3 6 5/8 38〜43. 4
12 7/16 315.9 6 5/8 38〜43. 4
12 5/8 320.7 6 5/8 38〜43. 4
13 1/8 333.4 6 5/8 38〜43. 4
13 1/2 342.9 6 5/8 38〜43. 4
13 5/8 346.1 6 5/8 38〜43. 4
13 3/4 349.3 6 5/8 38〜43. 4
4. Packaging & Shipping:

Packaging for tricone drill bit for water well drilling is in carton box.
Samples will be shipped by express, batch products will be shipped by sea;
3-5 days for samples, batch products are depend on the order quantity.

5. Our advantage:
  • We have CE,SGS certificate, we guarantee product quality, delivery time and payment in safe; button tooth used tricone bits
  • 20+ years manufacturing experience of drill bits;
  • Powerful technology support and mature manufacturing experience;
  • Strict quality control before delivering;
  • 24 hours online service;
  • We can provide customized products with special requirements.

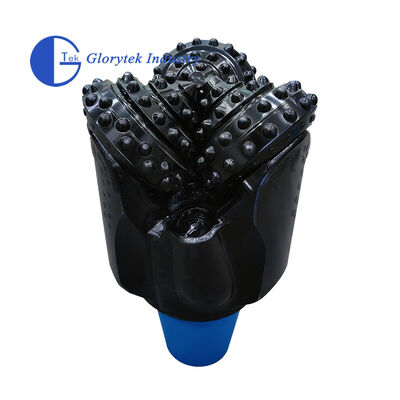

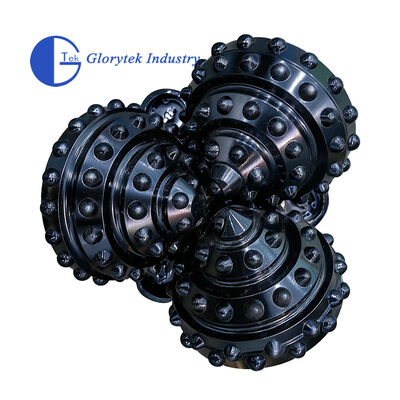

The Photo of products

High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 0High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 1

Company Profile

High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
